4 Post Car Parking Lift Car Parking Stacker for Garage 3600kg 2100mm Lifting Height

2 set
MOQ
2500$
fiyat
4 Post Car Parking Lift Car Parking Stacker for Garage 3600kg 2100mm Lifting Height
Özellikleri Fotoğraf Galerisi Ürün Açıklaması Fiyat talebi
Özellikleri

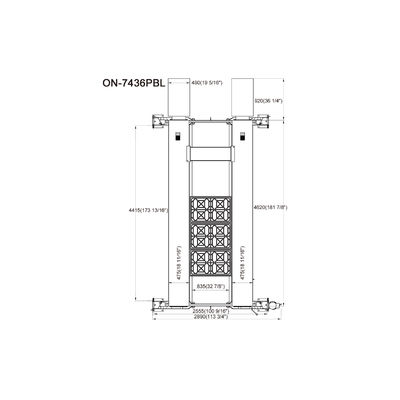

Teknik Özellikler
Kaldırma kapasitesi: 3600kg
Kaldırma süresi: ≤50s
Genel yükseklik: 2476mm (97 1/4 ")
Kaldırma yüksekliği: 2100mm (82 11/16 ")

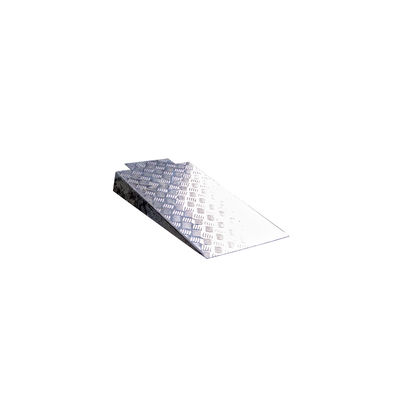

Toplam Uzunluk (Rampalar Dahil): 5540mm (218 1/8 ")
Toplam Uzunluk (Rampa Yok): 4620mm (181 7/8 ")
Genel genişlik: 2890mm (113 3/4 ")
Sütunlar arasındaki genişlik: 2385mm (93 7/8 ")
Temel bilgiler
Menşe yeri: ÇİN
Marka adı: WINTAI
Sertifika: CE
Model numarası: 7436pbl
Ödeme & teslimat koşulları
Ambalaj bilgileri: Çelik çerçeve
Teslim süresi: 5-15 iş günü
Ödeme koşulları: L/C, D/A, D/P, T/T, MoneyGram, Western Union
Yetenek temini: 500Set/Ay
Ürün Açıklaması

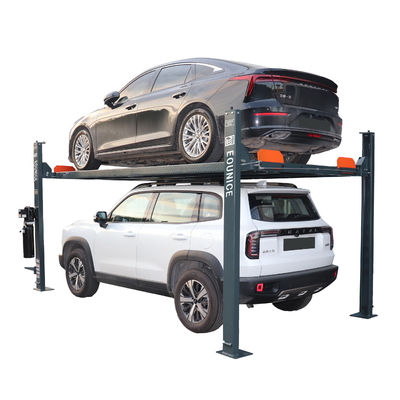

4 Post Car Parking Lift Car Parking Stacker for Garage 3600kg 2100mm lifting height


* 3,600Kg (8,000LBS.) lifting capacity.
* Single-point safety lock release by manual.
* Mechanical locks automatically engaged into position in ascending process.
* Out of level protection, safe and reliable.
* Self-lubricating pulleys and pre-tensioned wire rope for extended service life.

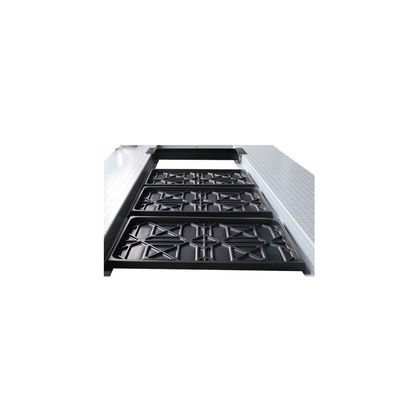

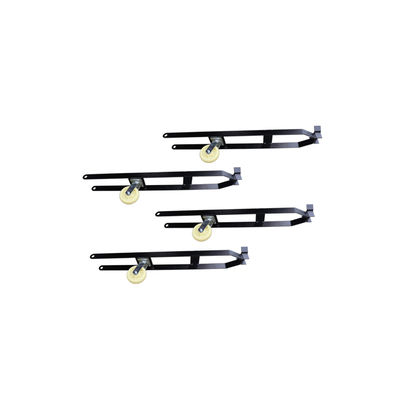

* Skid proof diamond platform.Standard with oil trays (3pcs), jack tray (1pc) and caster kits (4pcs).

* OEM/ODM service can be offered
Lift color can be offered as customer request.

1. The minimum ground height is 125mm(4 15/16”), which can effectively avoid the phenomenon of low chassis car hanging chassis.
2. The upper end of the column is suspended and the lower end is adjustable (adjustable range is 40mm), which can effectively
ensure the basic level of the two runways in the locked state and is less affected by ground factors.

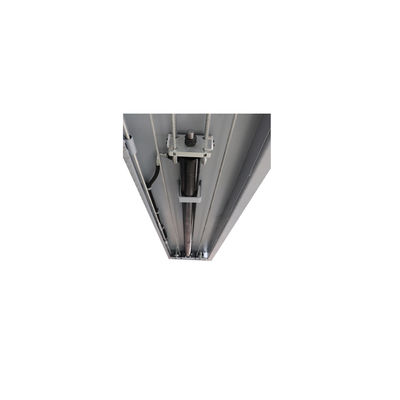

3. There are double insurance of manual safety and cable breaking safety inside the cross beam, and the reset device adopts
pressure spring and guide bar structure, even if the spring is broken due to the reason of guide bar, it can still be
effective to ensure the safety of use.
4. The main structural parts are welded by robot with good welding consistency, high strength and beautiful welding seam.
5. Structural parts are sprayed with imported powder, using imported spraying equipment spraying, high temperature curing, can
ensure strong adhesion, bright color and beautiful.
4 Post Car Parking Lift Car Parking Stacker for Garage 3600kg 2100mm Lifting Height 0
4 Post Car Parking Lift Car Parking Stacker for Garage 3600kg 2100mm Lifting Height 1
4 Post Car Parking Lift Car Parking Stacker for Garage 3600kg 2100mm Lifting Height 2
